Dragon Slayer Slingshot CNC Manufactured

SLINGSHOTS.UK

Dragon Slayer Slingshot CNC Manufactured

Feature rich Slingshot, with many accessories included as standard on this model, to name a few:

Single shot DRAGON SLAYER DUAL BAND model, dual telescopic Slingshot, easy to assemble and use out of the box. Exclusive to Slingshots.UK

This model is great for beginners & experts because it has multiple lengths for draw force, extend fully for adults, keep a small draw length for beginners.


NEW DUAL BAND RELEASE PLATE for 2023!

2 of firing lengths, 520mm (normal mode), 820mm (fully extended), this is the band length when loaded.

This slingshot is as little as 70cm in length when not in use or not loaded, in carrying mode. This is without the stock which is detachable.

The speed of the shot is determined by the bands used. Included is ONE Flat & One Round 4 band high speed set (may not be the same colour as shown in the pictures) but other sets can very easily be fitted to give you a full range of options when in use.

Package Contents as shown in pictures

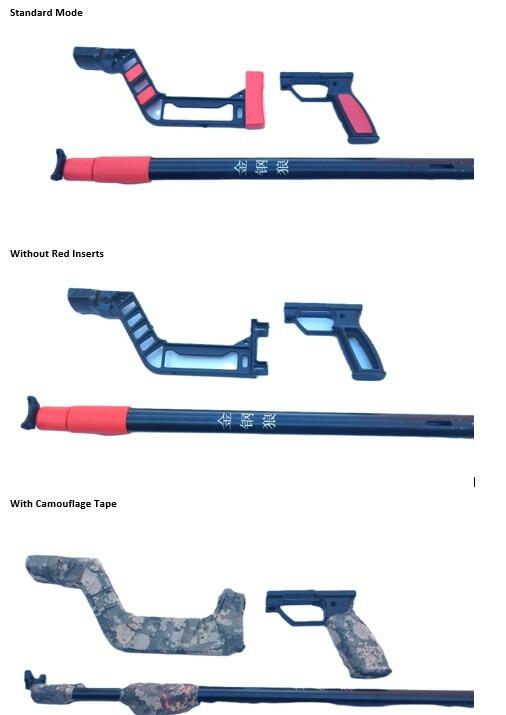

  • Full Red / Black Plastic Main Handle with red sides
  • One of Flat band
  • One of 4 band round set
  • Fixed length Red / Plastic Black stock with red sides and back (back can be removed)
  • Full Stainless Steel Releaser Trigger
  • Trigger Mount
  • Dragon Slayer main body

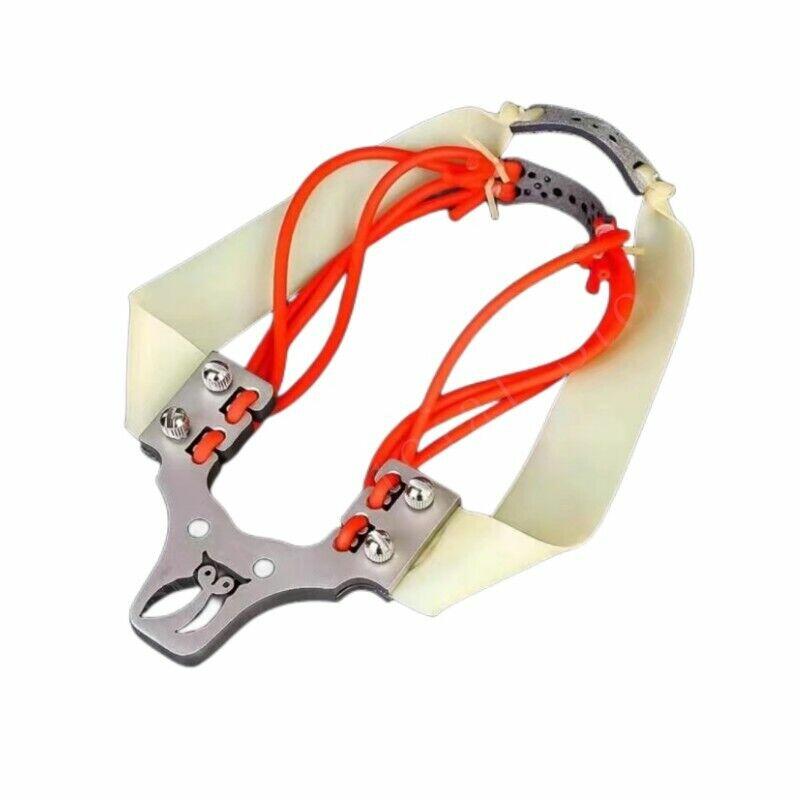

  • Dragon Slayer front Steel band plate DUAL BAND
  • Front Grip / retractable /  folding
  • All bolts / nuts required for assembly
  • Assembly guide


 Features

  • Main telescopic rail(s) are aluminium alloy
  • Front band plate is steel
  • Telescopic rails, with easy catch releases
  • Net weight: 1.75 Kg
ASSEMBLY GUIDE:

1. Open the bag with the head & bolts and attach to the rail as shown
c.jpg d.jpg

2. Next open the scope riser bag. there are two spacers and two bolts


Fit as shown below

Put the spacers on the rivets as shown


Put the screws into the scope (it can be put on 10mm up or 20mm up)


Put the scope riser and the screws into the spacers


Tighten as necessary, don't overtighten any of the screws!


3. Fit the trigger

Again, open the pack with the trigger in, there will be 4 bolts and an allen key


Pit the trigger on top of the trigger plate, insert the bolts and carefully tighten the bolts, tighten each bolt a few turns at a time until fully tight, again do not overtighten

(you may need to support the rail as shown below)

4. Add the Trigger Handle


Place the trigger rail onto the underside of main rail (you may need to support the rail as shown below)



Insert two of the screws and tighten as appropriate


Slide the handle onto the trigger rail as shown below

NOTE
Sometime, where the hole is on the handle, the plastic has not fully been removed

Simply remove the plastic by pushing a straight edge screwdriver into the hole

END NOTE

Push the handle on fully

Insert the nut on the side (shown above) hole

Push the screw into the other side and tighten the bolt appropriately

5. Add the bands, (for retracted 'short' barrel mode) there are 4 bands to go on each side, they insert on the inside of the head and push up or down, just make sure you place the same band in the opposite hole, repeat for the other side


Place the shot into the pouch

Pull the pouch with the shot over the trigger arms and push between the arms

WARNING! ONCE THE STAGE IS DONE AS SHOWN BELOW THE KIT IS ARMED!!!


6. Add the stock by pushing it onto the back of the rail, there is no need to push the stock on hard, it will stay where it is with a light push


7. Aim and Fire!

Adding the front grip (optional)

Insert the brass screw into the grip plate with the threaded hole
screw all the way in

Screw this plate into the handle
Again, screw all the way in and position the handle as shown

Add the handle to the barrel, near the front
Place the other plate on top and add the screws

Screw so the plates tighten against the barrel (be very careful not to cross thread the screws)

To open the barrel to retract or extend push the button shown below

Adding FLAT bands

Unscrew the bolts shown below,  both sides (it takes practice to know how far to loosen them)


Once opened, push against the screws, this opens the grip plate,
insert the band as shown
Tighten the screws, make sure to tighten these ones fully

DISCLAIMER - LIABILITY AND INHERENT RISKS WAIVER
Slingshots.UK (TEMPEST TRADE Services Ltd) is a reseller of slingshots and related accessories. We are NOT the original manufacturer. Whilst our suppliers make every conceivable effort to make their products as safe as possible, no item is immune from malfunction. So to put it another way, always use FULL SAFETY GEAR especially safety goggles and gloves when using these products.

You should only buy these products (i.e. slingshots and crossbows) if you understand the inherent risks of the sport and that you totally and unequivocally waive all your rights against Hammer Survival and any of it's owners by purchasing any of these products.

By purchasing these products, you accept to waive any rights (personal injury, property damage, everything) you have towards Tempest Trade Services Ltd. Selling as Slingshots.UK and any of its directors or employees personally, against any claim of any nature whatsoever. This is the largest waiver possible to be interpreted in the largest possible way against you. If any of this does not make sense to you, please do not purchase anything from us.

With that said, we want you to enjoy your purchase. Please be safe out there, and all will be well :)

In stock: 2

Sorry! We're out of stock

£0.00
£94.99

QTY

Share the love with your friend

Complete the form below and we'll email your friend about this product


You’ll earn 0 reward points with this purchase.

  • Very easy Assembly
  • Between 520mm and 820mm Draw
  • Removable Rear Stock (push on / off)
  • Bright attractive colouring
  • Dual Stainless Steel Head
  • Flat bands and round bands can be fitted easily
  • Flat Band Set Included
  • Round Band Set Included
  • Front Grip folds and retracts for storage
  • Solid Trigger Handle
  • Trigger is mounted on a Steel Plate, this increases the rigidity enormously compared to being bolted direct to the barrel
  • Latest Steel Trigger included
  • Scope Mount Included
  • Easily Extends and Retracts to adjust to band set used
